- Supports up to 32 wireless inputs, 4 wireless output expanders
- Offers multiple communication methods: LAN + Wi-Fi
- Up to 2-ch. on-board video verification
- Offers reliable protection utilizing two-way wireless technology
- Wireless connection reduces installation time
- Communicates up to 800 m (in open areas)
- Supports viewing event video via mobile client and email
- SIA-Contact ID protocol comaptible

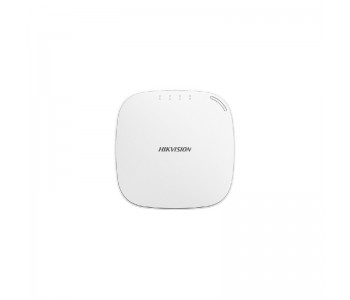

DS-PWA32-H(433MHz) – Hikvision Intrusion Alarm Panels
KSh13,500 KSh13,000
Add to Wishlist
Add to Compare
Compare
-
Description
- |
-
Reviews (0)
- |
-
Add Tags
- |
- Electrical Characteristics
- Power Supply5 VDC,10 W
- Battery Type4520 mAh lithium backup battery
- Battery Life Spansupports up to 12h power supply
- Power Consumption< 5.6 W
- Features
- Partition4
- Onboard Video ClipsUp to 2-ch onboard video
- Tamper-ProofTampering alarm
- ScheduleAuto Arm/Disarm Schedule
- SMS NotificationSupport
- Phone Call NotificationSupport
- Phone Numbers8
- Signal Strength Indication;Signal Strength Indicators (SSI);
- Firmware Undate ToolsWeb client / iVMS-4200 / Hik-Connect
- Configuration ToolsWeb client / iVMS-4200 / Hik-Connect
- ApplicationiVMS-4200, and mobile APP
- ProtocolSIA – Contact ID; EHome v5.0
- IC Card12
- User13 (1 installer, 1 administrator, and 11 general user)
- Interface
- Alarm Input32
- Alarm Output32
- IndicatorLED
- RF Transmission
- RF Frequency433MHz
- RF Modulation2GFSK
- RF Range800m (Open Area)
- Network
- Wired Network10M/100M Self-adaptive
- Network EncryptionAES-128 encryption
- Wi-Fi Standard802.11b/g/n
- Wi-Fi EncryptionSupported
- Wi-Fi Channel2.4 G
- General
- Operation Temperature–10 °C to 55 °C
- Operation Humidity10% to 90%
- Shell MaterialPC+ABS
- Dimension(WxHxD)155 × 155 × 35mm
- Audio
- Audio Output1, 1.5W
- Device Connection
- Keyfob8
- Wireless Siren4
- Tag Reader4
- Keypad4
