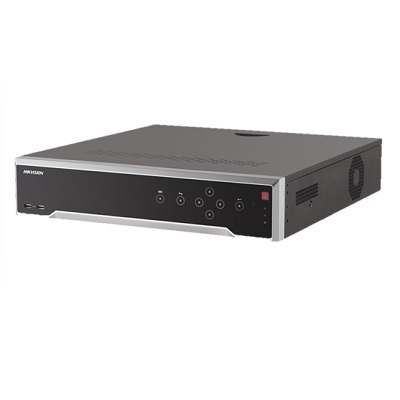

HikVision DS-7616NI-K2/16P NVR
HikVision DS-7616NI-K2/16P NVR
Up to 16 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 4K high-definition live view, storage and playback
Up to 8-ch @ 1080p decoding capacity
Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Compare
Video and Audio IP Video Input 16-ch HDMI Output 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Incoming Bandwidth 160 Mbps Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding Decoding Format H.265/H.265+/H.264/H.264+/MPEG4 Decoding Capability 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) Synchronous playback 16-ch Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface 16-ch Power ≤ 200 W Standard IEEE 802.3 af/at
Auxiliary Interface SATA 2 SATA interfaces Capacity Up to 6 TB capacity for each HDD USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 Alarm In/Out 4/1
General Power Supply 100 to 240 VAC，50 to 60Hz, 1 A Consumption ≤ 15 W (without enabling PoE) Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10 to 90 % Dimension (W × D × H) 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″) ≤ 3 kg (6.6 lb)
