I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only Supports a maximum of 24 autosensing 10/100/1000 ports |
Physical characteristics | |
Dimensions | 17.32(w) x 9.37(d) x 1.73(h) in. (44 x 23.8 x 4.4 cm) |
Weight | 7.28 lb (3.3 kg) |
Memory and processor | 1 MB flash; Packet buffer size: 512 KB |
Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack |
(hardware included); Desktop mounting | |
Performance | |
100 Mb Latency | < 8 µs (LIFO 64-byte packets) |
1000 Mb Latency | < 16 µs (LIFO 64-byte packets) |
10 Gbps Latency | < 2 µs (LIFO 64-byte packets) |
Throughput | Up to 35.7 Mpps (64-byte packets) |
Switching capacity | 48 Gbps |
MAC address table size | 8192 entries |
Environment | |
Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 5% to 95%, noncondensing |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
Altitude | Up to 16,404 ft (5 km) |
Acoustic | Power: 0 dB No fan |

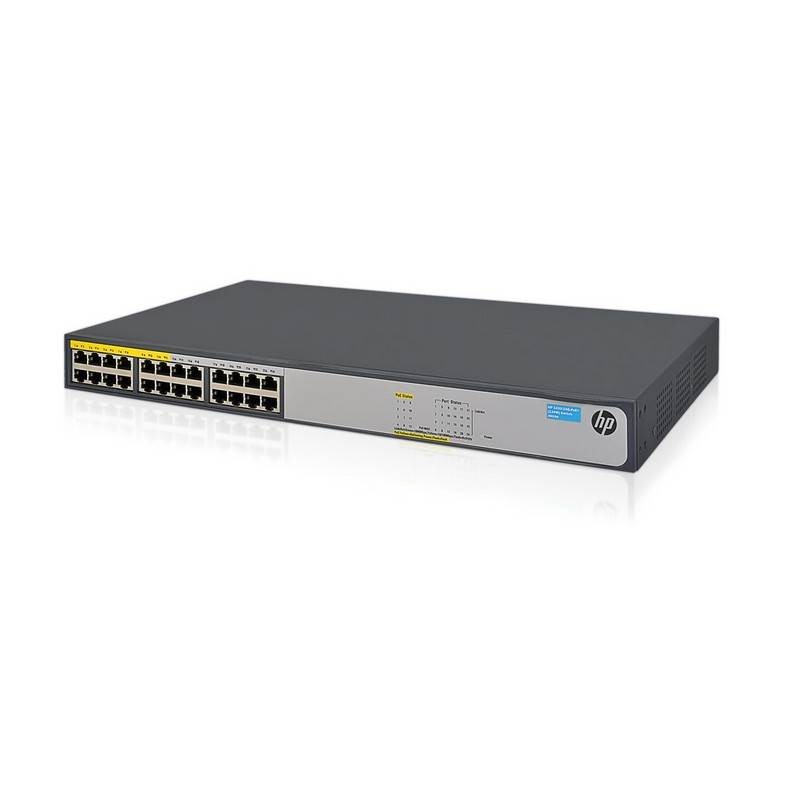

HPE OfficeConnect 1420-24G-PoE+ (124W) Switch (JH019A)
KSh55,000 KSh53,760
- Unmanaged plug-and-play Gigabit Ethernet switching
- Green features for low power consumption
- Fanless design for silent operation
- Quality of Service capabilities for improved network efficiency
- Limited Lifetime Warranty
-
Description
- |
-
Reviews (0)
- |
-
Add Tags
- |
The DS-3E1326P-E is a 10/100 Mbps web-managed switch that is designed for IP surveillance applications. Easily configured via a Web interface, users can setup VLANs, port mirroring, SNMP, and more. Or, they can just as easily use default settings, while still taking advantage of unique hardware features, such as outdoor power surge protection, optimized VIP ports, and extended power mode for longer cable runs to IP cameras. Hikvision web-managed switches provide the right mix of features to help reduce the cost of installation and maintenance.
Hikvision DS-3E0326P-E is an 24 10/100Mbps ports unmanaged switch that requires no configuration and provides 24 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc
The DS-3E0105P-E is a 10/100 Mbps unmanaged switch that requires no configuration and provides four PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant powered devices. In these situations, electrical power is transmitted alongside data in one single cable, allowing network expansion where there are no power lines or outlets, for devices such as IP cameras, IP phones, etc
- 200m RG59 coaxial cable with power cable
- Conductor material of Coaxial cable is OFC (Oxygen Free Copper)
- Braiding material of Coaxial cable is CCA (Copper-clad Aluminum)
- Conductor material of power cable is OFC (Oxygen Free Copper)
- VW-1 flame retardant rating
- Excellent anti-interference performance
- Excellent anti-aging performance
Input Voltage100V – 240V AC
Efficiency94%
Power Output800W
Warranty Standard StatementHPE power supplies will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded.
Weight (imperial)3.99 lb
Weight (metric)1.81 kg
Product Dimensions (imperial)7.5 x 12.75 x 4 in
Product Dimensions (metric)19.05 x 32.38 x 10.16 cm
Detailed Product DescriptionHPE 800W Flex slot platinum hot plug low halogen power supply
- Ports:
1x 10/100 WAN, 4x 10/100 LAN - LEDs:
Power, WLAN, Ethernet 1-4, Internet - Buttons:
1x Reset Button - Operating Temperature:
32 to 104°F (0 to 40°C)
- Storage Temperature:
-4 to 158°F (-20 to 70°C) - Operating Humidity:
10 to 80% Noncondensing - Max. Link Rate:
300 Mbps
HPE – power supply – hot-plug / redundant – 500 Watt – 563 VA | |
---|---|
Device Type | Power supply – hot-plug / redundant – plug-in module |
Specification Compliance | Flex Slot |
80 PLUS Certification | 80 PLUS Platinum |
Weight | 910 g |
Input Voltage | AC 100-240 V |
Power Capacity | 500 Watt / 563 VA |
Input Connectors | Power IEC 60320 C14 |
Dimensions (WxDxH) | 6.8 cm x 22.53 cm x 4.04 cm |
Designed For | Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL325 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL325 Gen10, DL345 Gen10, DL360 Gen10, DL365 Gen10, DL560 Gen10, DX385 Gen10 |
The DS-3D2208P is a two-layer network switch designed for video data transmission. They support all kinds of connections varying from 10/100M to 1000M for the flexible network configuration. The device supports various network management standards such as SNMP, Telnet, RMON and CLI. It can be managed by different network management platforms for a safe surveillance environment with highbandwidth and high-performance. DS-3D2000 PoE switches support 802.3af and 802.3at power supply modes with the maximum power supply on each port reaching up to 30W. The product is capable of distributing power automatically according to each port’s load characteristic, which is ideal for video surveillance application.
Type | Server – rack-mountable |
---|---|
Height (Rack Units) | 2U |
Localisation | Region: Worldwide (excluding China, Japan) |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Silver 4214R / 2.4 GHz (3.5 GHz) (12-core) |
Processor Socket | FCLGA3647 Socket |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
Cache Memory | 16.5 MB L3 Cache |
Cache Per Processor | 16.5 MB |
RAM | 32 GB (installed) / 1.5 TB (max) – DDR4 SDRAM – Advanced ECC |
Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) – PCIe 3.0 x8 (HPE Smart Array P408i-a SR Gen10) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | GigE |
Power | AC 120/230 V (50/60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.55 cm x 73.03 cm x 8.74 cm |
Weight | 14.76 kg |
Manufacturer Warranty | Limited warranty – parts and labour – 3 years – on-site |
Type | Server – rack-mountable |
---|---|
Height (Rack Units) | 2U |
Localisation | Region: Worldwide (excluding China, Japan) |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Silver 4208 / 2.1 GHz (3.2 GHz) (8-core) |
Processor Socket | FCLGA3647 Socket |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
Cache Memory | 11 MB L3 Cache |
Cache Per Processor | 11 MB |
RAM | 32 GB (installed) / 1.5 TB (max) – DDR4 SDRAM – Advanced ECC |
Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) – PCIe 3.0 x8 (HPE Smart Array P408i-a) |
Server Storage Bays | Hot-swap 2.5″ |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Video Memory | 16 MB |
Networking | GigE |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 44.55 cm x 73.03 cm x 8.74 cm |
Weight | 14.76 kg |
Environmental Standards | ENERGY STAR Qualified |
Manufacturer Warranty | Limited warranty – parts and labour – 3 years – on-site |
HPE Enterprise – hard drive – 2.4 TB – SAS 12Gb/s | |
---|---|
Type | Hard drive – hot-swap |
Capacity | 2.4 TB |
Form Factor | 2.5″ SFF |
Interface | SAS 12Gb/s |
Data Transfer Rate | 1.2 GBps |
Spindle Speed | 10000 rpm |
Features | Advanced format 512e, Digitally Signed Firmware |
Manufacturer Warranty | 3-year warranty |
Bundled with | HPE SmartDrive carrier |
Designed For | ProLiant DL120 Gen9, DL160 Gen9, DL180 Gen10, DL180 Gen9, DL20 Gen10, DL20 Gen9, DL325 Gen10, DL360 Gen10, DL385 Gen10, DL580 Gen10, DX560 Gen10, ML110 Gen10, ML110 Gen9, ML150 Gen9, ML30 Gen10, ML30 Gen9, ML350 Gen10, XL270d Gen9 |
General | |
---|---|
Capacity | 16 GB |
Upgrade Type | System specific |
OEM Manufacturer Equivalent Part Number | HPE P00922-B21 |
Memory | |
---|---|
Type | DRAM memory module |
Technology | DDR4 SDRAM |
Form Factor | DIMM 288-pin |
Speed | 2933 MHz (PC4-23400) |
Latency Timings | CL21 (21-21-21) |
Data Integrity Check | ECC |
Features | Dual rank, registered |
Chips Organization | X8 |
Voltage | 1.2 V |
