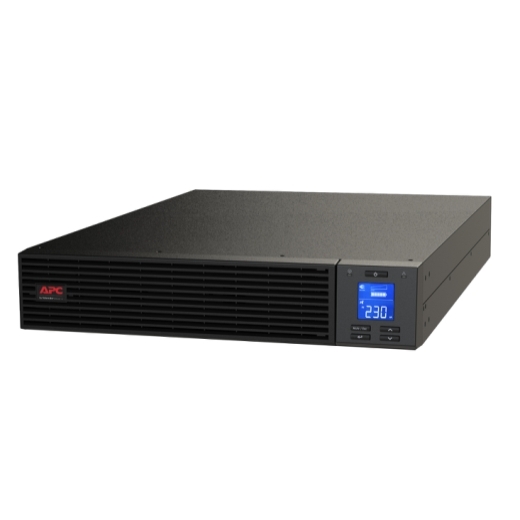

APC Easy UPS On-Line SRV RM 3000 VA 230V (SRV3KRIRK)
KSh98,500 KSh97,440
Max. Capacity Used
100%
Output power capacity
2.4kWatts / 3.0kVA
Rack Height
2U
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C20
Cord Length
1.5meters
Add to Wishlist
Add to Compare
Compare
-
Description
- |
-
Reviews (0)
- |
-
Add Tags
- |
Max Configurable Power (Watts)
2.4kWatts / 3.0kVA
Efficiency at Full Load
88.0 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input frequency
40 – 70 Hz
Input voltage range for main operations
100 – 280 Adjustable (half load)V
Number of Power Cords
1
Efficiency at Full Load
88.0 %
Other Input Voltages
220 V, 240 V
Battery type
Lead-acid battery
Typical recharge time
4hour(s)
Battery Charge Power (Watts)
118 Watts
Runtime
Efficiency
Interface Port(s)
DB-9 RS-232, Smart-Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity
1
Surge energy rating
600Joules
Maximum Height
86MM, 8.6CM
Maximum Width
437MM, 43.7CM
Maximum Depth
632MM, 63.2CM
Net Weight
27.6KG
Shipping weight
29.0KG
Shipping Height
229MM, 22.9CM
Shipping Width
569MM, 56.9CM
Shipping Depth
795MM, 79.5CM
Color
Black
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3000meters
Storage Temperature
-20 – 50 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15000meters
Audible noise at 1 meter from surface of unit
50.0dBA
Protection Class
IP20
Approvals
CE, EAC, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years repair or replace
Be the first to review “APC Easy UPS On-Line SRV RM 3000 VA 230V (SRV3KRIRK)”
You must be logged in to post a review.
Max. Capacity Used
100%
Output power capacity
2.4kWatts / 3.0kVA
Rack Height
4U
Output Connections
(6) IEC 60320 C13 (Battery Backup)
(1) IEC 60320 C19 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Max. Capacity Used
100%
Output power capacity
6.0kWatts / 6.0kVA
Rack Height
5U
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
Hard wire 3-wire (1P + N + E)
Run time for load
Min-max: 198-1980 W
W
8m 42s
Max. Capacity Used
100%
Output power capacity
1.98kWatts / 2.2kVA
Output Connections
(1) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Max. Capacity Used
100%
Output power capacity
10.0kWatts / 10.0kVA
Rack Height
5U
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
Hard wire 3-wire (1P + N + E)
Max. Capacity Used
100%
Output power capacity
10.0kWatts / 10.0kVA
Output Connections
(6) IEC 60320 C13 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)
(3) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V, 400V 3PH
Input Connections
Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)
Run time for load
Min-max: 90-900 W
W
10m 4s
Max. Capacity Used
100%
Output power capacity
900 Watts / 1.5kVA
Rack Height
2U
Output Connections
(4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 320 C14
Max. Capacity Used
100%
Output power capacity
1.0kWatts / 1.5kVA
Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 320 C14
Cord Length
1.8meters
Max. Capacity Used
100%
Output power capacity
2.1kWatts / 3.0kVA
Rack Height
2U
Output Connections
(2) IEC Jumpers (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 320 C20
KSh12,528
Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers
For our home and small office customers APC by Schneider Electric delivers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions while also delivering the quality millions of professionals trust around the world.
