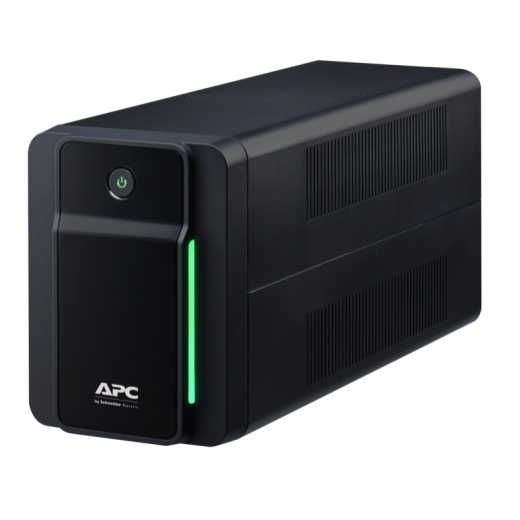

APC Back-UPS 750VA, 230V, AVR, IEC Sockets BX750MI


Key Features

  • Run time for load – 410 w 1m
  • Max. Capacity Used – 100%
  • Output power capacity – 410 Watts / 750VA
  • Output Connections – (4) IEC 60320 C13 (Battery Backup)
  • Nominal Output Voltage – 230V
  • Nominal Input Voltage – 230V
  • Input Connections – IEC 60320 C14
  • Cord Length – 1.2meters
  • APC Back-UPS 750VA, 230V, AVR, IEC Sockets
  • Battery Backup & Surge Protector for Electronics and Computers
  • Includes: User manual

Share it:


Max Configurable Power (Watts) 410 Watts / 750VA
Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains
Topology  Line interactive
Waveform type  Stepped approximation to a sinewave
Transfer Time  6 ms typical : 10 ms maximum


Input frequency 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations  140 – 300V
Number of Power Cords  1
Input Power Factor at Full Load  0.63

Batteries & Runtime

Battery type Lead-acid battery
Typical recharge time  8hour(s)
Expected Battery Life (years)  1 – 2
Battery Volt-Amp-Hour Capacity  108
Runtime  View Runtime Graph

View Runtime Chart

Efficiency  View Efficiency Graph

Communications & Management

Interface Port(s) USB
Control panel  LED Status display with on line : on battery
Audible Alarm  Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

Surge energy rating  273Joules
Data Line Protection  RJ45 10/100/1000 Base-T Ethernet protection


Maximum Height  160MM, 16.0CM
Maximum Width  120MM, 12.0CM
Maximum Depth  355MM, 35.5CM
Net Weight  5.4KG
Shipping weight  5.9KG
Shipping Height  250MM, 25.0CM
Shipping Width  197MM, 19.7CM
Shipping Depth  430MM, 43.0CM
Color  Black
SCC Codes  10731304410796


Operating Temperature  0 – 40 °C
Operating Relative Humidity  0 – 95 (Non-condensing) %
Operating Elevation  0 – 3000meters
Storage Temperature  -15 – 40 °C
Storage Elevation  0 – 3000meters
Audible noise at 1 meter from surface of unit  40.0dBA
Protection Class  IP20


Approvals CB , CE, EN/IEC 62040-1, EN/IEC 62040-2
Equipment protection policy  Lifetime: 50000 euros
Standard warranty  2 years repair or replace
